PESD5V0L1UB

Low Capacitance Unidirectional ESD Protection Diodes

PESD5V0L1UB Features

* I Unidirectional ESD protection of one line I Low diode capacitance: Cd = 25 pF I Low clamping voltage: VCL = 12 V I Very low leakage current: IRM = 10 nA I ESD protection up to 26 kV I IEC 61000-4-2; level 4 (ESD) I AEC-Q101 qualified 1.3 Applications I Computers and peripherals I Audio and video e

PESD5V0L1UB General Description

Low capacitance unidirectional ElectroStatic Discharge (ESD) protection diodes in small Surface-Mounted Device (SMD) plastic packages designed to protect one signal line from the damage caused by ESD and other transients. Table 1. Product overview Package NXP PESD5V0L1UA PESD5V0L1UB PESD5V0L1UL SOD3.

PESD5V0L1UB Datasheet (152.24 KB)

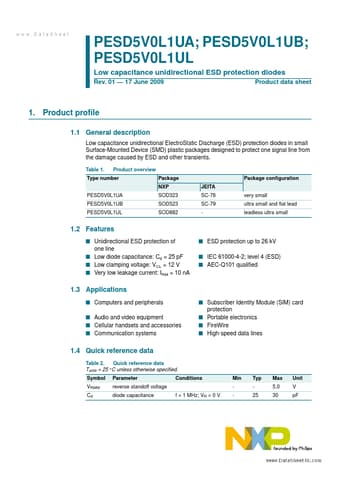

Preview of PESD5V0L1UB PDF

Datasheet Details

Part number:

PESD5V0L1UB

Manufacturer:

NXP ↗

File Size:

152.24 KB

Description:

Low capacitance unidirectional esd protection diodes.
www.DataSheet4U.com PESD5V0L1UA; PESD5V0L1UB; PESD5V0L1UL Low capacitance unidirectional ESD protection diodes Rev. 01

* 17 June 2009 Product.
