PHE13005

Silicon Diffused Power Transistor

PHE13005 Features

* Fast switching

* High voltage capability of 700 V

* Low thermal resistance 3. Applications

* Electronic lighting ballasts 4. Quick reference data Table 1. Quick reference data Symbol Parameter Conditions IC collector current DC; Fig. 4; Fig. 1; Fig. 2 Ptot

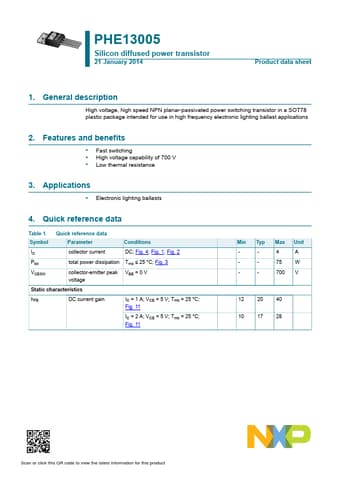

PHE13005 Datasheet (255.63 KB)

Preview of PHE13005 PDF

Datasheet Details

Part number:

PHE13005

Manufacturer:

NXP ↗

File Size:

255.63 KB

Description:

Silicon diffused power transistor.
