PHE13003C Datasheet, Transistor, WeEn

PHE13003C Features

• Transistor
• Fast switching
• High typical DC current gain
• High voltage capability of 700 V
• Very low switching and conduction losses 3. Applications

PDF File Details

Part number:

PHE13003C

Manufacturer:

WeEn

File Size:

264.97kb

Download:

📄 Datasheet

Description:

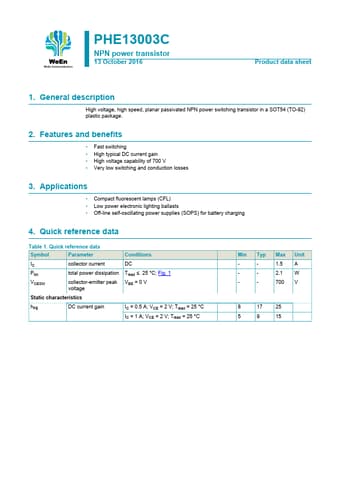

Npn power transistor. High voltage, high speed, planar passivated NPN power switching transistor in a SOT54 (TO-92) plastic package. 2. Features and benef

PHE13003C Application

• Applications
• Compact fluorescent lamps (CFL)
• Low power electronic lighting ballasts
• Off-line self-oscillating power su
