PIP3102-R Datasheet - NXP

PIP3102-R - LOGIC LEVEL TOPFET

Monolithic logic level protected power MOSFET using TOPFET2 technology assembled in a 5 pin surface mounting plastic package.

QUICK REFERENCE DATA SYMBOL VDS ID Ptot Tj RDS(ON) SYMBOL VPS PARAMETER Continuous drain source voltage Continuous drain current Total power dissipation Continuous junction

PIP3102-R Features

* TrenchMOS output stage with low on-state resistance Separate input pin for higher frequency drive 5 V logic compatible input Separate supply pin for logic www.DataSheet4U.com and protection circuits with low operating current Overtemperature protection Drain current limiting Short circuit load prote

PIP3102-R_PhilipsSemiconductors.pdf

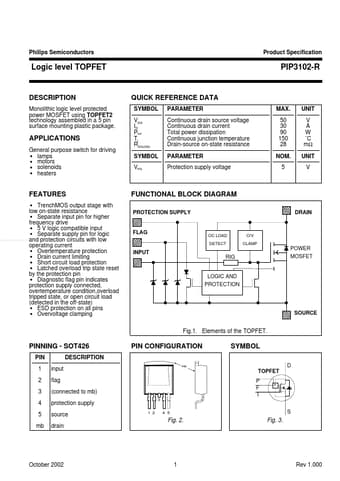

Preview of PIP3102-R PDF
PIP3102-R Datasheet Preview Page 2 PIP3102-R Datasheet Preview Page 3

Datasheet Details

Part number:

PIP3102-R

Manufacturer:

NXP ↗

File Size:

187.37 KB

Description:

Logic level topfet.
