PIP3118-B - LOGIC LEVEL TOPFET

Monolithic temperature and overload protected logic level power MOSFET in TOPFET2 technology assembled in a 3 pin surface mount plastic package.

QUICK REFERENCE DATA SYMBOL VDS ID PD Tj RDS(ON) IISL PARAMETER Continuous drain source voltage Continuous drain current Total power dissipation Continuou

PIP3118-B Features

* TrenchMOS output stage Current limiting Overload protection Overtemperature protection Protection latched reset by input 5 V logic compatible input level Control of output stage and supply of overload protection circuits derived from input Low operating input current permits direct drive by micro-co

PIP3118-B_PhilipsSemiconductors.pdf

Preview of PIP3118-B PDF

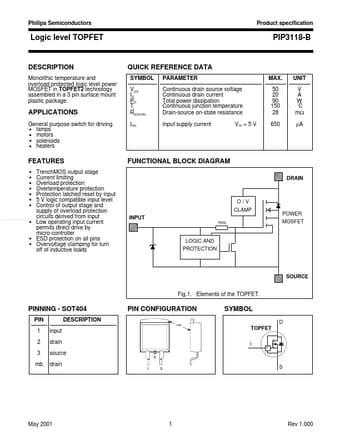

PIP3118-B Datasheet Preview Page 2 PIP3118-B Datasheet Preview Page 3

Datasheet Details

Part number:

PIP3118-B

Manufacturer:

NXP ↗

File Size:

57.84 KB

Description:

Logic level topfet.
