PIP3107-D Description

Philips Semiconductors Product specification Logic level TOPFET PIP3107-D .
Monolithic temperature and overload protected logic level power MOSFET in TOPFET2 technology assembled in a 3 pin surface mount plastic package.

PIP3107-D Features

* TrenchMOS output stage Current limiting Overload protection Overtemperature protection Protection latched reset by input 5 V logic compatible input level Control of output stage and supply of overload protection circuits derived from input Low operating input current permits direct drive by micro-co

📥 Download Datasheet

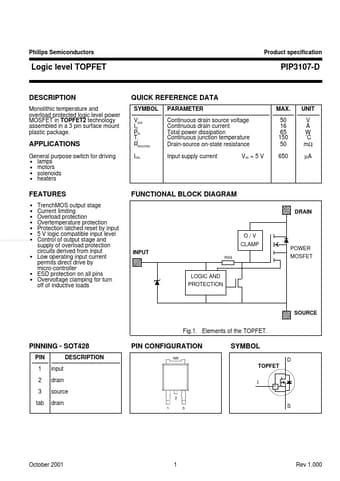

PIP3107-D Datasheet Preview — Preview of PIP3107-D PDF

Datasheet Details

Part number: PIP3107-D
Manufacturer: NXP ↗
File Size: 64.47 KB
Datasheet: PIP3107-D_PhilipsSemiconductors.pdf
Description: LOGIC LEVEL TOPFET
