PIP3119-P Datasheet - NXP

PIP3119-P - LOGIC LEVEL TOPFET

Monolithic temperature and overload protected logic level power MOSFET in TOPFET2 technology assembled in a 3 pin plastic package.

QUICK REFERENCE DATA SYMBOL VDS ID PD Tj RDS(ON) IISL PARAMETER Continuous drain source voltage Continuous drain current Total power dissipation Continuous junction tem

PIP3119-P Features

* TrenchMOS output stage Current limiting Overload protection Overtemperature protection Protection latched reset by input 5 V logic compatible input level Control of output stage and supply of overload protection circuits derived from input Low operating input current permits direct drive by micro-co

PIP3119-P_PhilipsSemiconductors.pdf

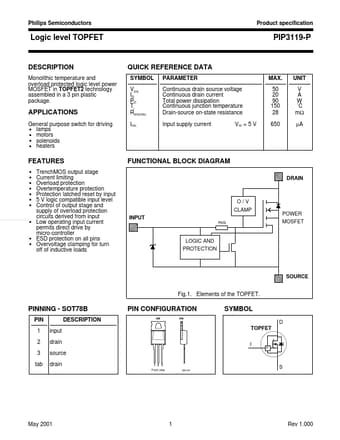

Preview of PIP3119-P PDF
