TDA9901

Wideband differential digital controlled variable gain amplifier

TDA9901 Features

* 130 MHz,

* 3 dB small signal bandwidth

* Digitally controlled gain

* TTL/CMOS compatible digital inputs (3.3 or 5 V)

* TTL single ended or differential clock input with PECL compatibility

* 24 dB gain control range

* Five steps of 6 dB plus 6

TDA9901 General Description

TDA9901 The TDA9901 is a wideband, low noise amplifier with differential inputs and outputs. The TDA9901 incorporates an AGC function with digital control. The TDA9901 is optimized for fast switching between different gain settings, preserving small phase and amplitude error. The TDA9901 presents .

TDA9901 Datasheet (90.71 KB)

Preview of TDA9901 PDF

Datasheet Details

Part number:

TDA9901

Manufacturer:

NXP ↗

File Size:

90.71 KB

Description:

Wideband differential digital controlled variable gain amplifier.

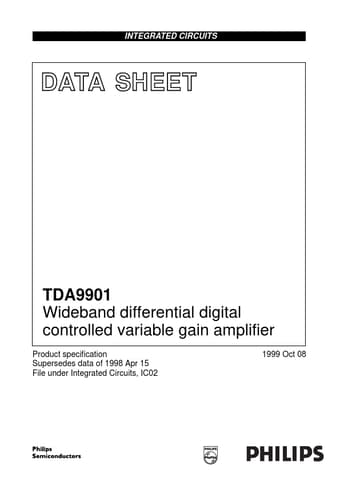

INTEGRATED CIRCUITS DATA SHEET TDA9901 Wideband differential digital controlled variable gain amplifier Product specification Supersedes data of 1998.
