TDA9917

up to 250 Msample/s Analog-to-Digital Converter (ADC)

TDA9917 Features

* I I I I I I I I I I I I I I 8-bit resolution High-speed sampling rate up to 250 Msample/s Maximum analog input frequency up to 450 MHz Programmable acquisition output clock (complete conversion signal) Differential analog input Integrated voltage regulator or external control for analog input full-s

TDA9917 General Description

The TDA9917 is a differential, high-speed, 8-bit Analog-to-Digital Converter (ADC) optimized for telecommunication transmission control systems and tape drive applications. The TDA9917 offers the selection between Low-Voltage Differential Signals (LVDS) and 1.8 V Complementary Metal Oxide Semiconduc.

TDA9917 Datasheet (156.17 KB)

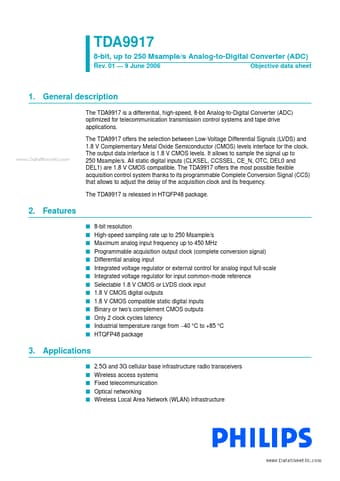

Preview of TDA9917 PDF

Datasheet Details

Part number:

TDA9917

Manufacturer:

NXP ↗

File Size:

156.17 KB

Description:

Up to 250 msample/s analog-to-digital converter (adc).
