TDA9965

30 Msps analog-to-digital interface for CCD cameras

TDA9965 Features

* Clamp and Track/Hold (CTH) circuit with adjustable bandwidth, Programmable Gain Amplifier (PGA), 12-bit Analog-to-Digital Converter (ADC) and reference regulator

* Fully programmable via a 3-wire serial interface

* Sampling frequency up to 30 MHz

* PGA gain from 0 t

TDA9965 General Description

plastic low profile quad flat package; 48 leads; body 7 × 7 × 1.4 mm TDA9965

* TTL compatible inputs; TTL and CMOS compatible outputs. APPLICATIONS

* CCD camera systems. GENERAL DESCRIPTION The TDA9965 is a 12-bit analog-to-digital interface for a CCD camera. The device includes a CT.

TDA9965 Datasheet (183.01 KB)

Preview of TDA9965 PDF

Datasheet Details

Part number:

TDA9965

Manufacturer:

NXP ↗

File Size:

183.01 KB

Description:

30 msps analog-to-digital interface for ccd cameras.

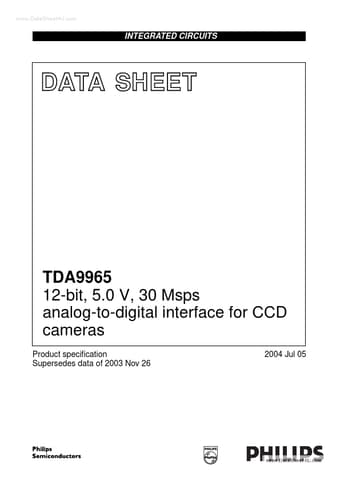

www.DataSheet4U.com INTEGRATED CIRCUITS DATA SHEET TDA9965 12-bit, 5.0 V, 30 Msps analog-to-digital interface for CCD cameras Product specification .
