TDA9935

Dual 14-bit up to 160 Msample/s 2 interpolating Digital-to-Analog Converter

TDA9935 Features

* I I I I I I I I I I Dual 14-bit resolution SFDR = 80 dBc at 2.5 MHz Input data rate up to 80 Msample/s 2 × interpolation filter Output data rate up to 160 Msample/s Single 3.3 V power supply Low noise capacitor-free integrated PLL Low power dissipation HTQFP80 package Ambient temperature from

TDA9935 General Description

The TDA9935 is optimized to reduce architecture complexity and overall system cost. Thanks to its direct IF conversion capabilities, it leads dynamic performance in multi-carrier support. With an internal sampling rate up to 160 Msample/s, TDA9935 is an extremely competitive solution for WCDMA, CDMA.

TDA9935 Datasheet (143.00 KB)

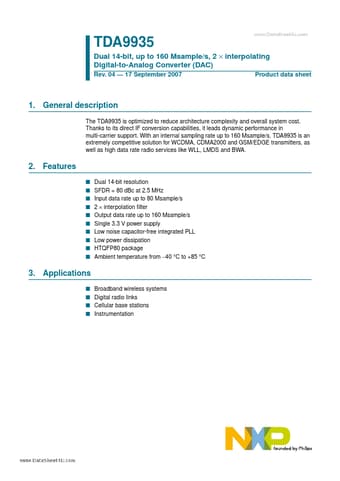

Preview of TDA9935 PDF

Datasheet Details

Part number:

TDA9935

Manufacturer:

NXP ↗ Semiconductors

File Size:

143.00 KB

Description:

Dual 14-bit up to 160 msample/s 2 interpolating digital-to-analog converter.
TDA9935 Rev. 04

* 17 September 2007 www.DataSheet4U.com Dual 14-bit, up to 160 Msample/s, 2 × interpolating Digital-to-Analog Converter (DAC.
