TJA1040T, TJA1040 - High speed CAN transceiver

NXP

📥 Download Datasheet

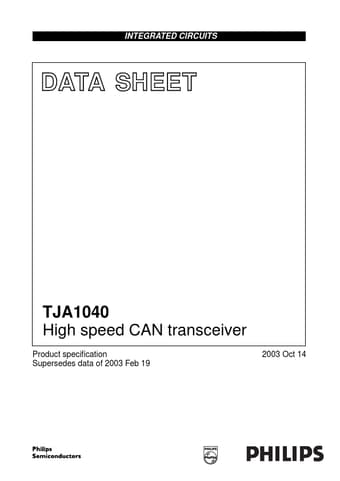

TJA1040T Datasheet Preview — This datasheet PDF includes multiple part numbers: TJA1040T, TJA1040. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	TJA1040T, TJA1040
Manufacturer	NXP ↗
File Size	90.58 KB
Description	High speed CAN transceiver
Datasheet	TJA1040_PhilipsSemiconductors.pdf
Note	This datasheet PDF includes multiple part numbers: TJA1040T, TJA1040. Please refer to the document for exact specifications by model.

TJA1040T Product details

Description

The TJA1040 is the interface between the Controller Area Network (CAN) protocol controller and the physical bus.

Features

Fully compatible with the ISO 11898 standard.
High speed (up to 1 MBaud).
Very low-current standby mode with remote wake-up capability via the bus.
Very low ElectroMagnetic Emission (EME).
Differential receiver with high common-mode range for ElectroMagnetic Immunity (EMI).
Transceiver in unpowered state disengages from the bus (zero load).
Input levels compatible with 3.3 V and 5 V devices.
Voltage source for stabilizing t.
