TJA1041A

High speed CAN transceiver

TJA1041A Features

* Optimized for in-vehicle high speed communication

* Fully compatible with the ISO 11898 standard

* Communication speed up to 1 Mbit/s

* Very low ElectroMagnetic Emission (EME)

* Differential receiver with wide common-mode range, offering high ElectroMagnetic Immunity

TJA1041A General Description

plastic small outline package; 14 leads; body width 3.9 mm bare die; 1920 × 3190 × 380 µm TJA1041A

* Over-temperature protection with diagnosis

* Undervoltage detection on pins VCC, VI/O and VBAT

* Automotive environment transient protected bus pins and pin VBAT

* Sh.

TJA1041A Datasheet (119.26 KB)

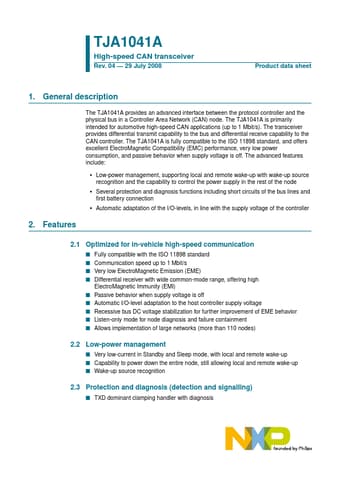

Preview of TJA1041A PDF

Datasheet Details

Part number:

TJA1041A

Manufacturer:

NXP ↗

File Size:

119.26 KB

Description:

High speed can transceiver.
INTEGRATED CIRCUITS DATA SHEET TJA1041A High speed CAN transceiver Product specification Supersedes data of 2003 Sep 29 2004 Feb 20 Philips Semicond.
