TSA6060 - Fast radio tuning PLL frequency synthesizer

NXP

📥 Download Datasheet

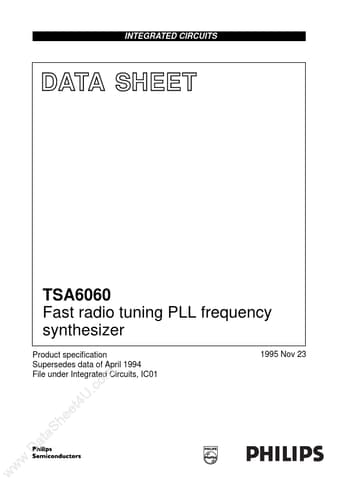

TSA6060 Datasheet Preview — Preview of TSA6060 PDF

Datasheet Details

Part number: TSA6060
Manufacturer: NXP ↗
File Size: 221.48 KB
Datasheet: TSA6060_PhilipsSemiconductors.pdf
Description: Fast radio tuning PLL frequency synthesizer

TSA6060 Product details

Description

TSA6060 The TSA6060 is a frequency synthesizer manufactured in SUBILO-N technology (components laterally separated by oxide).The device performs all the tuning functions of a PLL radio tuning system.The IC is designed for application in all types of radio receivers.MAX.5.5 12.0 1.5 500 30 500 300 +85 V V UNIT VCC1 + 1 8.5 mA mA MHz kHz MHz MHz mV mV mW °C O

Features

On-chip AM and FM prescalers with high input sensitivity.
On-chip high-performance one-input-two-output, tuning voltage amplifier for the AM and FM loop filters.
On-chip two-level current amplifier (charge pump) for loop gain adjustment.
One reference oscillator (4 or 8 MHz) for both AM and FM.
High-speed tuning provided by a powerful digital memory phase detector.
40 kHz output reference frequency for communication between the FM/IF system.
