TSA021 Datasheet - TNK

TSA021 Flyback Transformer Surface Mount Magnetics

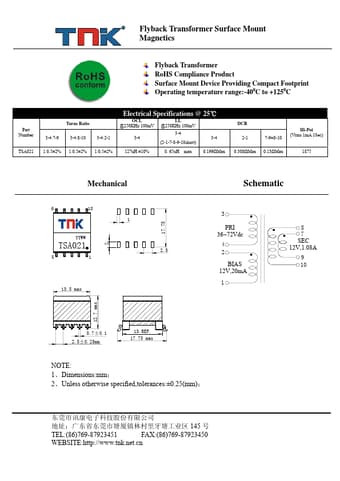

Flyback Transformer Surface Mount Magnetics Flyback Transformer RoHS Compliance Product Surface Mount Device Providing Compact Footprint Operating temperature range:-400C to +1250C Part Number TSA021 Turns Ratio 3-4:7-9 3-4:8-10 3-4:2-1 1:0.5±2% 1:0.5±2% 1:0.5±2% Electrical Specifications @ 25℃ OCL LL @250KHz 100mV @250KHz 100mV 3-4 3-4 3-4 (2-1-7-8-9-10short) 127uH ±10% 0. 65uH max 0.199ΩMax DCR 2-1 7-9=8-10 Hi-Pot (Vrms 1mA 1Sec) 0.308ΩMax 0.13ΩMax 1875 Mechanical 6 10 YY.

TSA021-TNK.pdf

TSA021 Datasheet Preview — Preview of TSA021 PDF

Datasheet Details

Part number:

TSA021

Manufacturer:

TNK

File Size:

107.55 KB

Description:

Flyback transformer surface mount magnetics.
