TSA1001 Datasheet - ST Microelectronics

TSA1001 A/D CONVERTER

The TSA1001 is a 10-bit, 25Msps sampling frequency Analog to Digital converter using a CMOS technology combining high performances and very low power consumption. The TSA1001 is based on a pipeline structure and digital error correction to provide excellent static linearity and go beyond 9.8 effecti.

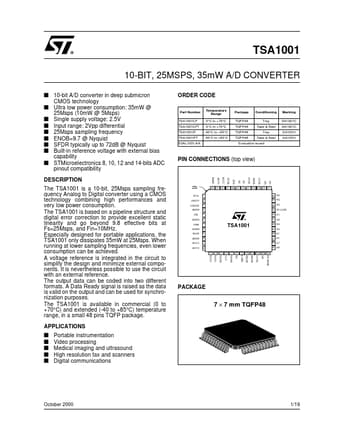

www.DataSheet4U.com TSA1001 10-BIT, 25MSPS, 35mW A/D CONVERTER s 10-bit A/D converter in deep submicron s s s s s s s s CMOS technology Ultra low power consumption: 35mW @ 25Msps (10mW @ 5Msps) Single supply voltage: 2.5V Input range: 2Vpp differential 25Msps sampling frequency ENOB=9.7 @ Nyquist SFDR typically up to 72dB @ Nyquist Built-in reference voltage with external bias capability STMicroelectronics 8, 10, 12 and 14-bits ADC pinout compatibility ORDER CODE Part Number TSA1001CF TSA1001CF.
