Datasheet Details
- Part number
- TSA1002
- Manufacturer
- STMicroelectronics ↗
- File Size
- 278.47 KB
- Datasheet
-
TSA1002_STMicroelectronics.pdf
- Description
- 50mW A/D CONVERTER
TSA1002_STMicroelectronics.pdf

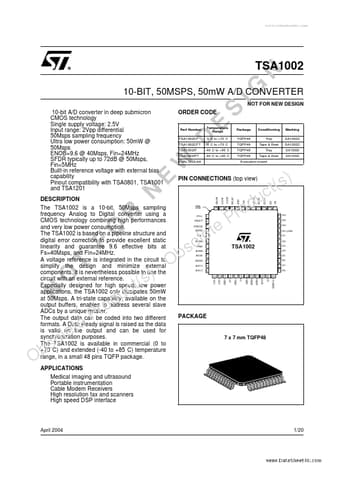

N 10-bit A/D converter in deep submicron CMOS technology Single supply voltage: 2.5V Input range: 2Vpp differential 50Msps sampling frequency Ultra low power consumption: 50mW @ 50Msps ENOB=9.6 @ 40Msps, Fin=24MHz SFDR typically up to 72dB @ 50Msps, Fin=5MHz Built-in reference voltage with external bias capability Pinout compatibility with TSA0801, TSA1001 and TSA1201 ORDER CODE Part Number TSA1002CF TSA1002IF E Temperature Range 0 C to +70 C 0 C to +70 C S Package TQFP48 TQFP48 TQFP48 TQF
