TSA1005 A/D CONVERTER

The TSA1005 belongs to a new generation of high speed, dual-channel Analog to Digital converters, processed in a mainstream 0.25 µm CMOS technology and yielding high performances. The TSA1005 is specifically designed for applications requiring a very low noise floor, high SFDR and good isolation bet.

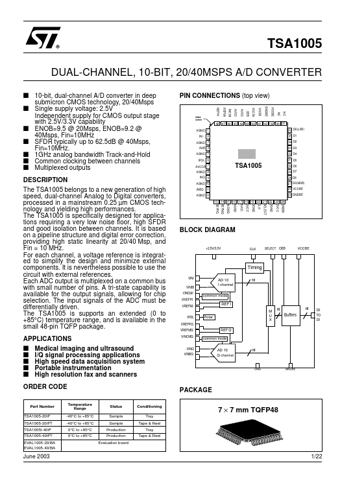

www.DataSheet4U.com TSA1005 DUAL-CHANNEL, 10-BIT, 20/40MSPS A/D CONVERTER s 10-bit, dual-channel A/D converter in deep s s s s s s submicron CMOS technology, 20/40Msps Single supply voltage: 2.5V Independent supply for CMOS output stage with 2.5V/3.3V capability ENOB=9.5 @ 20Msps, ENOB=9.2 @ 40Msps, Fin=10MHz SFDR typically up to 62.5dB @ 40Msps, Fin=10MHz. 1GHz analog bandwidth Track-and-Hold Common clocking between channels Multiplexed outputs PIN CONNECTIONS (top view) GNDBE VCCBE REFPI VCCB.
