TSA156 VDSL Line Transformer Surface Mount Magnetics

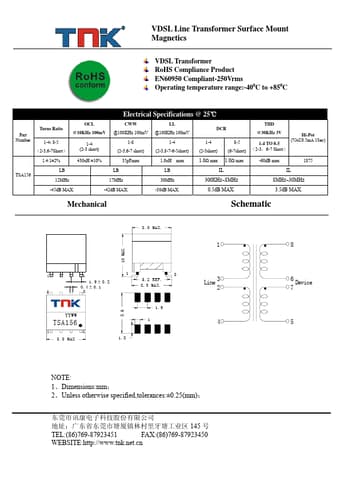

VDSL Line Transformer Surface Mount Magnetics VDSL Transformer RoHS Compliance Product EN60950 Compliant-250Vrms Operating temperature range:-400C to +850C Electrical Specifications @ 25℃ Part Number Turns Ratio 1-4: 8-5 （2-3,6-7Short） OCL @10KHz 100mV 1-4 (2-3 short) CWW @100KHz 100mV 1-8 (2-3,6-7 short) LL @100KHz 100mV 1-4 (2-3,8-7-6-5short) DCR 1-4 (2-3short) 8-5 (6-7short) THD @30KHz 3V Hi-Pot 1-4 TO 8-5 (VAC0.5mA 1Sec) （2-3，6-7 Short） 1.4:1±2% 430uH ±10% 35pFmax 1.0uH m.

TSA156 Datasheet (103.91 KB)

TSA156 Datasheet Preview — Preview of TSA156 PDF

Datasheet Details

Part number:

TSA156

Manufacturer:

TNK

File Size:

103.91 KB

Description:

Vdsl line transformer surface mount magnetics.
