TSA048 Datasheet - TNK

TSA048 Flyback Transformer Surface Mount Magnetics

Flyback Transformer Surface Mount Magnetics Part Number Turns Ratio 3-2: 5-7 3-2:6-8 TSA048 2.5:1±2% 2.5:1±2% Flyback Transformer RoHS Compliance Product Surface Mount Device Providing Compact Footprint Operating temperature range:-400C to +1250C Electrical Specifications @ 25℃ OCL @20KHz 0.1V LL @100KHz 0.1V DCR 3-2 3-2 3-2 5,6-7,8 (5+6+7+8short) 40uH ±10% 0.7uH max 98mΩ MAX. 26mΩ MAX. Hi-Pot (VAC 5mA 1Sec) PRI. TO SEC. 1500 Mechanical 12.06 MAX. 2.54 Schematic 11.6 15.6.

TSA048 Datasheet (103.95 KB)

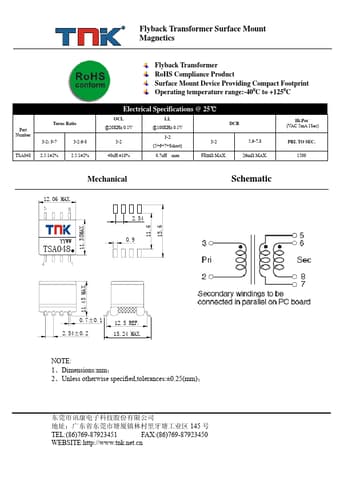

TSA048 Datasheet Preview — Preview of TSA048 PDF

Datasheet Details

Part number:

TSA048

Manufacturer:

TNK

File Size:

103.95 KB

Description:

Flyback transformer surface mount magnetics.
