TSA60R280S1

N-Channel MOSFET

Truesemi

TSA60R280S1 Features

* 650V @TJ = 150 ℃

* Typ. RDS(on) = 0.24Ω

* Ultra Low gate charge (typ. Qg = 43nC)

* 100% avalanche tested Absolute Maximum Ratings Symbol VDSS ID IDM VGSS EAS IAR EAR dv/dt Parameter Drain-Source Voltage Drain Current -Continuous (TC = 25℃) -Continuous (TC = 10

TSA60R280S1 General Description

Truesemi SJ-FET is new generation of high voltage MOSFET family that is utilizing an advanced charge balance mechanism for outstanding low on-resistance and lower gate charge performance. This advanced technology has been tailored to minimize conduction loss, provide superior switching performance, .

TSA60R280S1 Datasheet (613.81 KB)

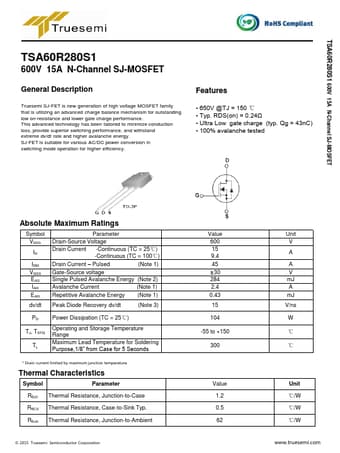

TSA60R280S1 Datasheet Preview — Preview of TSA60R280S1 PDF

Datasheet Details

Part number:

TSA60R280S1

Manufacturer:

Truesemi

File Size:

613.81 KB

Description:

N-channel mosfet.
