MMLP57F

TMR Linear Sensor

MMLP57F Features

* n Tunneling Magnetoresistance (TMR) Technology n Compatible with Wide Range of Supply Voltages n Extremely Low Power Consumption n Excellent Thermal Stability n Very Low Hysteresis Applications n Magnetic Field Sensing n Current Sensors n Displacement Sensing n Rotary Position Sensors Absolute Max

MMLP57F General Description

The MMLP57F linear sensor utilizes a unique push-pull Wheatstone bridge composed of four unshielded TMR sensor elements. The unique bridge design provides a high sensitivity differential output that is linearly proportional to a magnetic field applied parallel to the surface of the sensor packag.

MMLP57F Datasheet (270.23 KB)

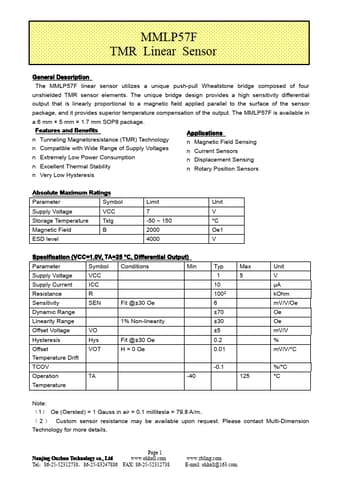

Preview of MMLP57F PDF

Datasheet Details

Part number:

MMLP57F

Manufacturer:

Nanjing Ouzhuo Technology

File Size:

270.23 KB

Description:

Tmr linear sensor.
