54ACQ244 - Quiet Series Octal Buffer/Line Driver

National Semiconductor

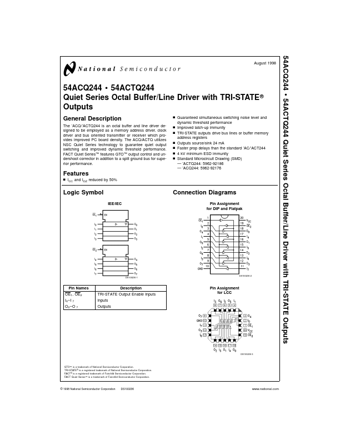

The 54ACQ244 by National Semiconductor is a Quiet Series Octal Buffer/Line Driver. Below is the official datasheet preview.

📥 Download Datasheet

54ACQ244 Quiet Series Octal Buffer/Line Driver by National Semiconductor - Datasheet Preview — Official preview page of the **54ACQ244** Quiet Series Octal Buffer/Line Driver datasheet (National Semiconductor).

Datasheet Details

Part number	54ACQ244
Manufacturer	National Semiconductor
File Size	161.80 KB
Description	Quiet Series Octal Buffer/Line Driver
Datasheet	54ACQ244_NationalSemiconductor.pdf
Additional preview pages of the 54ACQ244 datasheet.

54ACQ244 Product details

Description

The ’ACQ/’ACTQ244 is an octal buffer and line driver designed to be employed as a memory address driver, clock driver and bus oriented transmitter or receiver which provides improved PC board density.

Features

GTO™ output control and undershoot corrector in addition to a split ground bus for superior performance. n Guaranteed simultaneous switching noise level and dynamic threshold performance n Improved latch-up immunity n TRI-STATE outputs drive bus lines or buffer memory address registers n Outputs source/sink 24 mA n Faster prop delays than the standard ’AC/’ACT244 n 4 kV minimum ESD immunity n Standard Microcircuit Drawing (SMD).
’ACTQ244: 5962-92186.
’ACQ244: 5962-92176 Featur.
