54ACQ373, Quiet Series Octal Transparent Latch

www.DataSheet4U.com 54ACQQ373 * 54ACTQ373 Quiet Series Octal Transparent Latch with TRI-STATE Outputs September 1998 54ACQ373 * 54A.
The ’ACQ/’ACTQ373 consists of eight latches with TRI-STATE outputs for bus organized system applications.

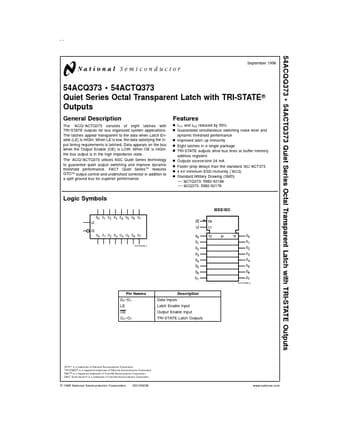

datasheet Preview Page 1 from Datasheet4u.com

54ACQ373_NationalSemiconductor.pdf

54ACQ373 Datasheet Preview — Preview of 54ACQ373 PDF

Datasheet Details

Part number:

54ACQ373

Manufacturer:

National Semiconductor

File Size:

188.37 KB

Description:

Quiet Series Octal Transparent Latch

Features

* GTO™ output control and undershoot corrector in addition to a split ground bus for superior performance. Features n ICC and IOZ reduced by 50% n Guaranteed simultaneous switching noise level and dynamic threshold performance n Improved latch up immunity n Eight latches in a single package n TRI-STA

Applications

* The latches appear transparent to the data when Latch Enable (LE) is HIGH. When LE is low, the data satisfying the input timing requirements is latched. Data appears on the bus when the Output Enable (OE) is LOW. When OE is HIGH, the bus output is in the high impedance state. The ’ACQ/’ACTQ373 util
