54ACQ374 - Quiet Series Octal D Flip-Flop

National Semiconductor

The 54ACQ374 by National Semiconductor is a Quiet Series Octal D Flip-Flop. Below is the official datasheet preview.

📥 Download Datasheet

54ACQ374 Quiet Series Octal D Flip-Flop by National Semiconductor - Datasheet Preview — Official preview page of the **54ACQ374** Quiet Series Octal D Flip-Flop datasheet (National Semiconductor).

Datasheet Details

Part number	54ACQ374
Manufacturer	National Semiconductor
File Size	191.89 KB
Description	Quiet Series Octal D Flip-Flop
Datasheet	54ACQ374_NationalSemiconductor.pdf

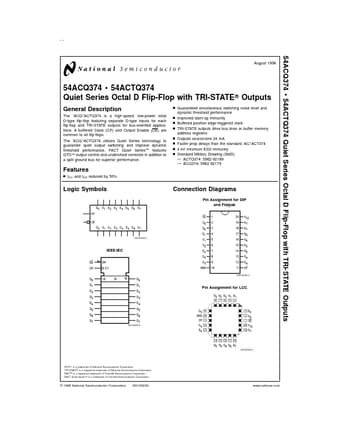

Additional preview pages of the 54ACQ374 datasheet.

54ACQ374 Product details

Description

The ’ACQ/’ACTQ374 is a high-speed, low-power octal D-type flip-flop featuring separate D-type inputs for each flip-flop and TRI-STATE outputs for bus-oriented applications.

Features

GTO™ output control and undershoot corrector in addition to a split ground bus for superior performance. n Guaranteed simultaneous switching noise level and dynamic threshold performance n Improved latch-up immunity n Buffered positive edge-triggered clock n TRI-STATE outputs drive bus lines or buffer memory address registers n Outputs source/sink 24 mA n Faster prop delays than the standard ’AC/’ACT374 n 4 kV minimum ESD immunity n Standard Military Drawing (SMD).
’ACTQ374: 5962-92189.
