54ACQ573 Quiet Series Octal Latch

54ACQ573 Description

www.DataSheet4U.com 54ACQ573 * 54ACTQ573 Quiet Series Octal Latch with TRI-STATE Outputs August 1998 54ACQ573 * 54ACTQ573 Quiet Ser.
The ’ACQ/’ACTQ573 is a high-speed octal latch with buffered common Latch Enable (LE) and buffered common Output Enable (OE) inputs.

54ACQ573 Features

* GTO™ output control and undershoot corrector in addition to a split ground bus for superior performance. n Guaranteed simultaneous switching noise level and dynamic threshold performance n Improved latch-up immunity n Inputs and outputs on opposite sides of package allow easy interface with micropro

54ACQ573 Applications

* requiring greater than 2000 temperature cycles from
* 40˚C to +125˚C. Note 2: Absolute maximum ratings are those values beyond which damage to the device may occur. The databook specifications should be met, without exception, to ensure that the system design is reliable over its power supply

📥 Download Datasheet

Preview of 54ACQ573 PDF

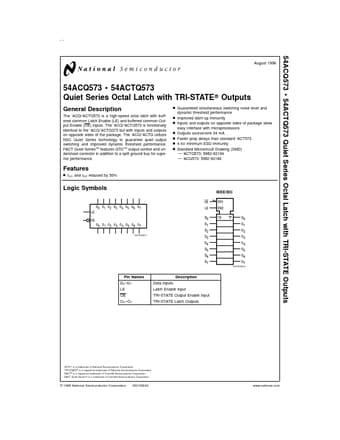

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
54ACQ573
Manufacturer
National Semiconductor
File Size
186.86 KB
Datasheet
54ACQ573_NationalSemiconductor.pdf
Description
Quiet Series Octal Latch
