54F534

Octal D-Type Flip-Flop

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor Rochester Electronics LLC SNJ54F534FK BUS DRIVER DigiKey 0 100 units
$3.03

54F534 Datasheet (188.71 KB)

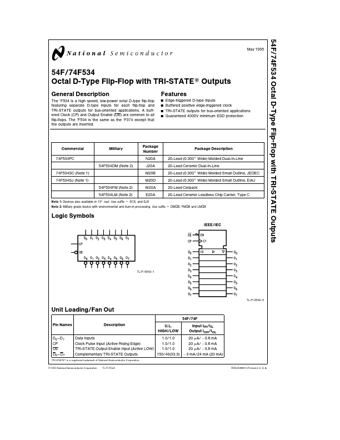

Preview of 54F534 PDF Datasheet

Datasheet Details

Part number:

54F534

Manufacturer:

National Semiconductor

File Size:

188.71 KB

Description:

Octal d-type flip-flop

54F534 Features

* Y Y Y Y Edge-triggered D-type inputs Buffered positive edge-triggered clock TRI-STATE outputs for bus-oriented applications Guaranteed 4000V minimum ESD protection Commercial 74F534PC Military Package Number N20A Package Description 20-Lead (0 300 Wide) Molded Dual-In-Line 20-Lead Ceramic Dual-

54F534 General Description

The ’F534 is a high speed low-power octal D-type flip-flop featuring separate D-type inputs for each flip-flop and TRI-STATE outputs for bus-oriented applications A buffered Clock (CP) and Output Enable (OE) are common to all flip-flops The ’F534 is the same as the ’F374 except that the outputs are .
