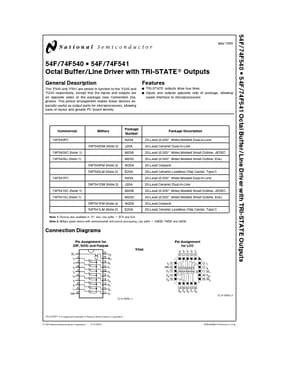

54F540 Datasheet, Driver, National Semiconductor

54F540 Features

• Driver Y Y TRI-STATE outputs drive bus lines Inputs and outputs opposite side of package allowing easier interface to microprocessors Commercial 74F540PC Military Package Number N20A Pack

PDF File Details

Part number:

54F540

Manufacturer:

National Semiconductor

File Size:

184.85kb

Download:

📄 Datasheet

Description:

Octal buffer/line driver. The ’F540 and ’F541 are similar in function to the ’F240 and ’F244 respectively except that the inputs and outputs are on opposite si
