AM190

Monolithic N-Channel Junction FET Switches

AM190 Features

* Interfaces with standard DTL, TTL and CMOS Constant "ON" resistance with signals to i10V 00 "ON" resistance match 2 i~l typ "OFF" isolation and crosstalk less than

* 60 dB at 10 MHz (typ) tON'tOFF = 105 ns/95 ns typ 00 Break-before-make action Ol Applications A-to-D/D-to-A converters D

AM190 General Description

These devices combine N-channel junction FETs and bipolar transistors on a single chip for the first time in a new N-channel Bi-FET process. This technology provides the industry's only low "ON" resistance, high speed, monolithic N-channel junction FET analog switch. Unique circuit techniques are em.

AM190 Datasheet (265.76 KB)

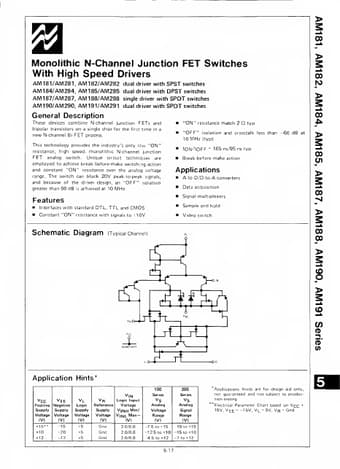

Preview of AM190 PDF

Datasheet Details

Part number:

AM190

Manufacturer:

National Semiconductor

File Size:

265.76 KB

Description:

Monolithic n-channel junction fet switches.
00 > Monolithic N-Channel Junction FET Switches With High Speed Drivers 00 AM181/AM281, AM182/AM282 dual driver with SPST switches rO AM184/AM28.
