AM190N10-04B

N-Channel MOSFET

AM190N10-04B Features

* Low rDS(on) trench technology

* Low thermal impedance

* Fast switching speed Typical Applications:

* LED Inverter Circuits

* DC/DC Conversion Circuits

* Motor drives AM190N10-04B VDS (V) 100 PRODUCT SUMMARY rDS(on) (mΩ) 9 @ VGS = 10V 10.5 @ VGS =

AM190N10-04B Datasheet (302.33 KB)

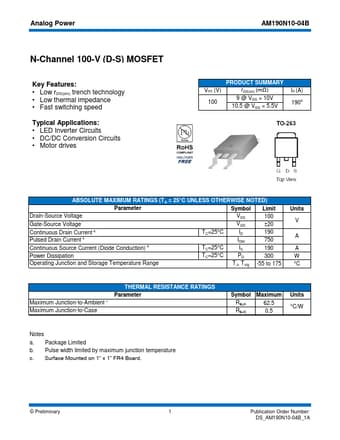

Preview of AM190N10-04B PDF

Datasheet Details

Part number:

AM190N10-04B

Manufacturer:

Analog Power

File Size:

302.33 KB

Description:

N-channel mosfet.
