AM1936NE

N-Channel 30-V (D-S) MOSFET

AM1936NE Features

* Low rDS(on) trench technology

* Low thermal impedance

* Fast switching speed Typical Applications:

* White LED boost converters

* Automotive Systems

* Industrial DC/DC Conversion Circuits PRODUCT SUMMARY rDS(on) (mΩ) 90 @ VGS = 10V 130 @ VGS = 4.5V

AM1936NE Datasheet (627.80 KB)

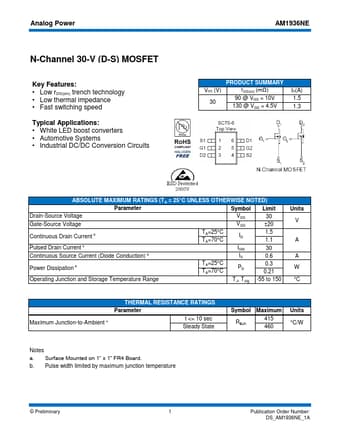

Preview of AM1936NE PDF

Datasheet Details

Part number:

AM1936NE

Manufacturer:

Analog Power

File Size:

627.80 KB

Description:

N-channel 30-v (d-s) mosfet.
