AM1960NE Datasheet, Mosfet, Analog Power

AM1960NE Features

  • Mosfet
  • Low rDS(on) trench technology
  • Low thermal impedance
  • Fast switching speed Typical Applications:
  • DC/DC Conversion Circuits
  • Motor Drives

PDF File Details

Part number:

AM1960NE

Manufacturer:

Analog Power

File Size:

289.55kb

Download:

📄 Datasheet

Description:

Dual n-channel mosfet.

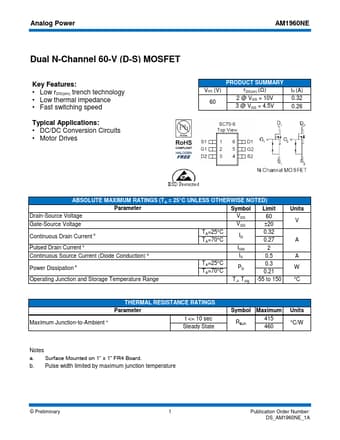

Datasheet Preview: AM1960NE 📥 Download PDF (289.55kb)
Page 2 of AM1960NE Page 3 of AM1960NE

AM1960NE Application

  • Applications
  • DC/DC Conversion Circuits
  • Motor Drives VDS (V) 60 PRODUCT SUMMARY rDS(on) (Ω) 2 @ VGS = 10V 3 @ VGS = 4.5V ID (
