AM1922NE Datasheet - Analog Power

AM1922NE N-Channel 20-V (D-S) MOSFET

Analog Power N-Channel 20-V (D-S) MOSFET These miniature surface mount MOSFETs utilize a high cell density trench process to provide low rDS(on) and to ensure minimal power loss and heat dissipation. Typical applications are DC-DC converters and power management in portable and battery-powered products such as computers, printers, PCMCIA cards, cellular and cordless telephones. Low rDS(on) provides higher efficiency and extends battery life Low thermal imp.

AM1922NE_AnalogPower.pdf

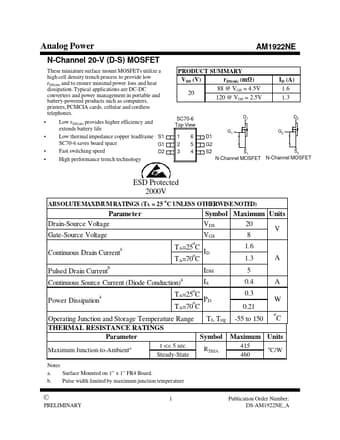

Preview of AM1922NE PDF
AM1922NE Datasheet Preview Page 2 AM1922NE Datasheet Preview Page 3

Datasheet Details

Part number:

AM1922NE

Manufacturer:

Analog Power

File Size:

154.66 KB

Description:

N-channel 20-v (d-s) mosfet.
