CD4093BM, Quad 2-Input NAND Schmitt Trigger

CD4093BM CD4093BC Quad 2-Input NAND Schmitt Trigger February 1993 CD4093BM CD4093BC Quad 2-Input NAND Schmitt Trigger General .
The CD4093B consists of four Schmitt-trigger circuits Each circuit functions as a 2-input NAND gate with Schmitt-trigger action on both inputs The gat.

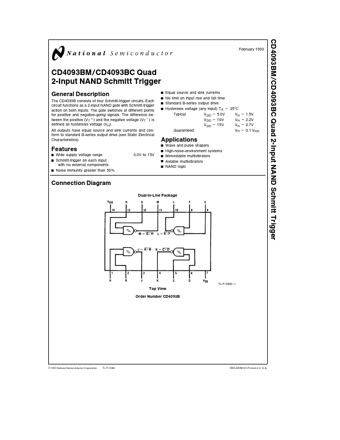

datasheet Preview Page 1 from Datasheet4u.com

CD4093BM_NationalSemiconductor.pdf

CD4093BM Datasheet Preview — Preview of CD4093BM PDF

Datasheet Details

Part number:

CD4093BM

Manufacturer:

National Semiconductor

File Size:

157.17 KB

Description:

Quad 2-Input NAND Schmitt Trigger

Features

* Y Y Y Wide supply voltage range Schmitt-trigger on each input with no external components Noise immunity greater than 50% 3 0V to 15V Wave and pulse shapers High-noise-environment systems Monostable multivibrators Astable multivibrators NAND logic Connection Diagram Dual-In-Line Package TL F 5
