CGS701ATV Datasheet, Driver, National Semiconductor

CGS701ATV Features

  • Driver Y Y Y Y Y Y Y Y Y Y Y Y Y Y Y Guaranteed 400 ps pin-to-pin skew (tOSHL and tOSLH) on 1X outputs Pentium and PowerPCTM compatible g 300 ps propagation delay Output buffer of eight dri

PDF File Details

Part number:

CGS701ATV

Manufacturer:

National Semiconductor

File Size:

162.72kb

Download:

πŸ“„ Datasheet

Description:

Commercial/ industrial low skew pll 1 to 8 cmos clock driver. CGS701A is an off the shelf clock driver specifically designed for today’s high speed designs It provides low skew outputs which are

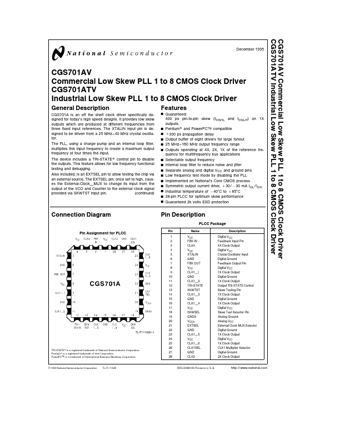

Datasheet Preview: CGS701ATV πŸ“₯ Download PDF (162.72kb)
Rating: 1 β˜… (2 votes)
Page 2 of CGS701ATV Page 3 of CGS701ATV

CGS701ATV Application

  • Applications Selectable output frequency Internal loop filter to reduce noise and jitter Separate analog and digital VCC and ground pins Low frequen
