CGS700V

Commercial Low Skew PLL 1 to 9 CMOS Clock Driver

CGS700V Features

* Guaranteed and tested: - 500 ps pin-to-pin skew (toSHL and toSLH) on 1X outputs

* Output buffer of nine drivers for large fanout

* 25 MHz-160 MHz output frequency range

* Outputs operating at 4X, 2X, 1X of the reference fre- quency for multi-frequency bus applicatio

CGS700V General Description

CGS700 is an off the shelf clock driver specifically designed around the PowerPc™ architecture. It provides low skew outputs which are produced at different frequencies from three fixed input references. The XTALIN input pin is designed to be driven from three distinct crystal oscillators running at.

CGS700V Datasheet (180.74 KB)

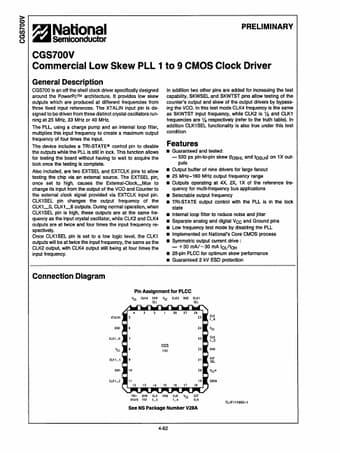

Preview of CGS700V PDF

Datasheet Details

Part number:

CGS700V

Manufacturer:

National Semiconductor

File Size:

180.74 KB

Description:

Commercial low skew pll 1 to 9 cmos clock driver.
