CGS701AV

Commercial/ Industrial Low Skew PLL 1 to 8 CMOS Clock Driver

CGS701AV Features

* Y Y Y Y Y Y Y Y Y Y Y Y Y Y Y Guaranteed 400 ps pin-to-pin skew (tOSHL and tOSLH) on 1X outputs Pentium and PowerPCTM compatible g 300 ps propagation delay Output buffer of eight drivers for large fanout 25 MHz

* 160 MHz output frequency range Outputs operating at 4X 2X 1X of the referenc

CGS701AV General Description

CGS701A is an off the shelf clock driver specifically designed for today’s high speed designs It provides low skew outputs which are produced at different frequencies from three fixed input references The XTALIN input pin is designed to be driven from a 25 MHz

*40 MHz crystal oscillator The P.

CGS701AV Datasheet (162.72 KB)

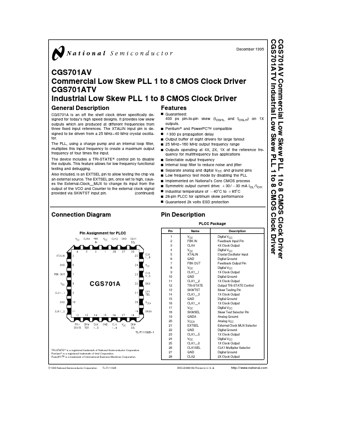

Preview of CGS701AV PDF

Datasheet Details

Part number:

CGS701AV

Manufacturer:

National Semiconductor

File Size:

162.72 KB

Description:

Commercial/ industrial low skew pll 1 to 8 cmos clock driver.
CGS701AV Commercial Low Skew PLL 1 to 8 CMOS Clock Driver CGS701ATV Industrial Low Skew PLL 1 to 8 CMOS Clock Driver December 1995 CGS701AV Commerci.
