DM5410 - Triple 3-Input NAND Gates

Product Overview

National Semiconductor

Part number	DM5410
Manufacturer	National Semiconductor
File Size	84.72 KB
Description	Triple 3-Input NAND Gates
Datasheet	DM5410 Datasheet

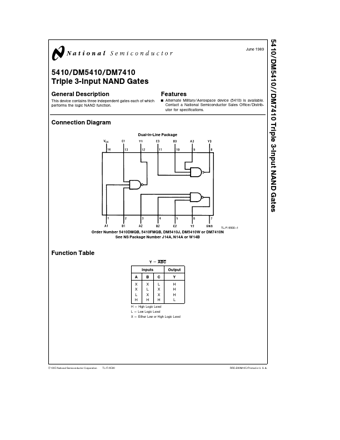

Additional preview pages of the DM5410 datasheet.

This device contains three independent gates each of which performs the logic NAND function

Y Alternate Military Aerospace device (5410) is available Contact a National Semiconductor Sales Office Distributor for specifications Connection Diagram Dual-In-Line Package TL F 6500.
1 Order Number 5410DMQB 5410FMQB DM5410J DM5410W or DM7410N See NS Package Number J14A N14A or W14B Function Table Y e ABC Inputs Output ABC Y XXL XLX LXX HHH H H H L H e High Logic Level L e Low Logic Level X e Either Low or High Logic Level C1995 National Semiconductor Corporation TL F 650.
