DM5414

Hex Inverter with Schmitt Trigger Inputs

DM5414 General Description

This device contains six independent gates each of which performs the logic INVERT function Each input has hysteresis which increases the noise immunity and transforms a slowly changing input signal to a fast changing jitter free output Connection Diagram Dual-In-Line Package TL F 6503

* 1.

DM5414 Datasheet (95.27 KB)

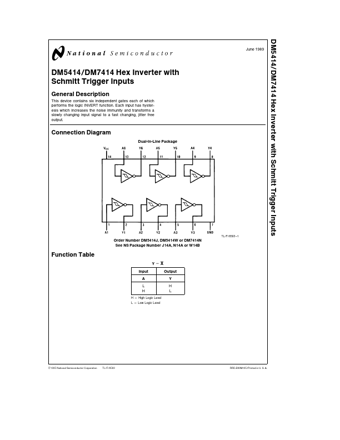

Preview of DM5414 PDF

Datasheet Details

Part number:

DM5414

Manufacturer:

National Semiconductor

File Size:

95.27 KB

Description:

Hex inverter with schmitt trigger inputs.
