DM54125 - Quad TRI-STATE Buffers

Product Overview

National Semiconductor

Datasheet Details

Part number	DM54125
Manufacturer	National Semiconductor
File Size	98.67 KB
Description	Quad TRI-STATE Buffers
Datasheet	DM54125 Datasheet
Additional preview pages of the DM54125 datasheet.

Product details

Description

This device contains four independent gates each of which performs a non-inverting buffer function The outputs have the TRI-STATE feature When enabled the outputs exhibit the low impedance characteristics of a standard TTL output with additional drive capability at the high Logic level to permit the driving of bus lines without external pull-up resistors When disabled both the output transistors are turned off presenting a high-impedance state to the bus line Thus the output will act neither as

Features

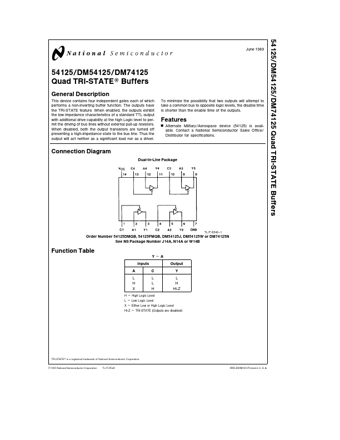

Y Alternate Military Aerospace device (54125) is available Contact a National Semiconductor Sales Office Distributor for specifications Connection Diagram Dual-In-Line Package TL F 6540.
1 Order Number 54125DMQB 54125FMQB DM54125J DM54125W or DM74125N See NS Package Number J14A N14A or W14B Function Table YeA Inputs A L H X C L L H Output Y L H Hi-Z H e High Logic Level L e Low Logic Level X e Either Low or High Logic Level Hi-Z e TRI-STATE (Outputs are disabled) TRI-STATE is a r.
