DM54122

Retriggerable Resettable Multivibrator

DM54122 Features

* positive and negative DC level triggering inputs complementary outputs an optional 10 kX internal timing resistor and an overriding Direct Clear (CD) input When the circuit is in the quasi-stable (delay) state another trigger applied to the inputs (per Truth Table) will cause the delay period to sta

DM54122 Datasheet (125.79 KB)

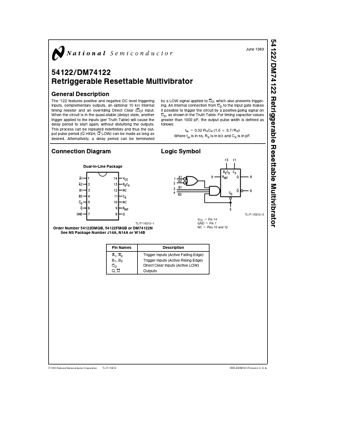

Preview of DM54122 PDF

Datasheet Details

Part number:

DM54122

Manufacturer:

National Semiconductor

File Size:

125.79 KB

Description:

Retriggerable resettable multivibrator.
