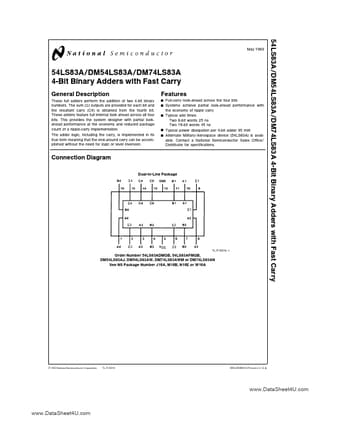

DM74LS83A Datasheet, adders equivalent, National Semiconductor

DM74LS83A Features

• Adders Y Y Y Y Y Full-carry look-ahead across the four bits Systems achieve partial look-ahead performance with the economy of ripple carry Typical add times Two 8-bit words 25 ns Two 16-bi

PDF File Details

Part number:

DM74LS83A

Manufacturer:

National Semiconductor

File Size:

168.61kb

Download:

📄 Datasheet

Description:

4-bit binary adders. These full adders perform the addition of two 4-bit binary numbers The sum (R) outputs are provided for each bit and the resultant ca
