DS1679

Hex TRI-STATEE TTL to MOS Drivers

DS1679 Features

* Y Y Y Y High speed capabilities  Typ 9 ns driving 50 pF  Typ 30 ns driving 500 pF TRI-STATE outputs for data bussing Built-in 15X damping resistor (DS1649 DS3649) Same pin-out as DM8096 and DM74366 Schematic Diagram Truth Table Disable Input DIS 1 0 0 0 1 1 DIS 2 0 0 1 0 1 0 1 X X X 1 0 Hi-Z H

DS1679 General Description

The DS1649 DS3649 and DS1679 DS3679 are Hex TRI-STATE MOS drivers with outputs designed to drive large capacitive loads up to 500 pF associated with MOS memory systems PNP input transistors are employed to reduce input currents allowing the large fan-out to these drivers needed in memory systems The.

DS1679 Datasheet (140.37 KB)

Preview of DS1679 PDF

Datasheet Details

Part number:

DS1679

Manufacturer:

National Semiconductor

File Size:

140.37 KB

Description:

Hex tri-statee ttl to mos drivers.

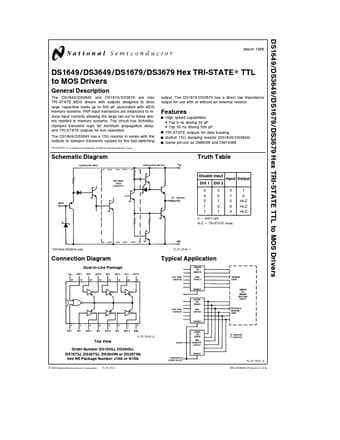

DS1649 DS3649 DS1679 DS3679 Hex TRI-STATE TTL to MOS Drivers March 1986 DS1649 DS3649 DS1679 DS3679 Hex TRI-STATE TTL to MOS Drivers General Descrip.
