DS16F95QML

EIA-485/EIA-422A Differential Bus Transceiver

DS16F95QML Features

* lower power, extended temperature range and improved specifications. The DS16F95 combines a TRI-STATE ® differential input line receiver, both of which operate from a single 5.0V power supply. The driver and receiver have an active Enable that can be externally connected to function as a direction c

DS16F95QML General Description

The DS16F95 Differential Bus Transceiver is a monolithic integrated circuit designed for bidirectional data communication on balanced multipoint bus transmission lines. The transceiver meets EIA standard RS-485 as well as RS-422A. The DS16F95 offers improved performance due to the use of state-of-th.

DS16F95QML Datasheet (762.93 KB)

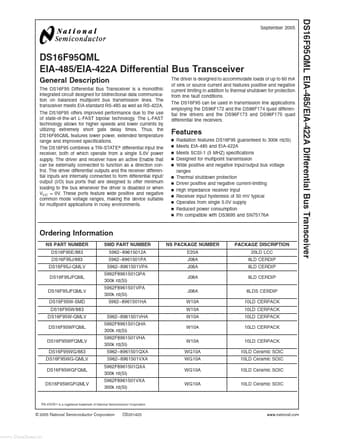

Preview of DS16F95QML PDF

Datasheet Details

Part number:

DS16F95QML

Manufacturer:

National Semiconductor

File Size:

762.93 KB

Description:

Eia-485/eia-422a differential bus transceiver.
