DS26F32MQML - Quad Differential Line Receivers

Product Overview

National Semiconductor

Datasheet Details

Part number	DS26F32MQML
Manufacturer	National Semiconductor
File Size	682.58 KB
Description	Quad Differential Line Receivers
Datasheet	DS26F32MQML Datasheet

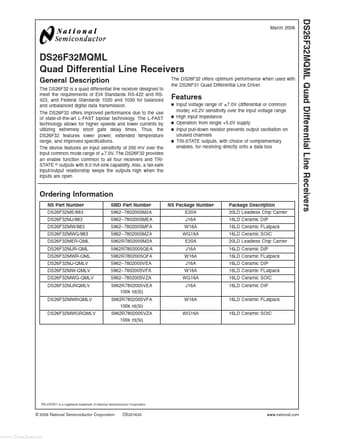

Additional preview pages of the DS26F32MQML datasheet.

Product details

Description

The DS26F32 is a quad differential line receiver designed to meet the requirements of EIA Standards RS-422 and RS423, and Federal Standards 1020 and 1030 for balanced and unbalanced digital data transmission.

Features

lower power, extended temperature range, and improved specifications. The device features an input sensitivity of 200 mV over the input common mode range of ± 7.0V. The DS26F32 provides an enable function common to all four receivers and.
