DS91M040

125 MHz Quad M-LVDS Transceiver

DS91M040 Features

* DC - 125 MHz / 250 Mbps low jitter, low skew, low power operation

* Wide Input Common Mode Voltage Range allows up to

* ±2V of GND noise Conforms to TIA/EIA-899 M-LVDS Standard Pin selectable M-LVDS receiver type (1 or 2) Controlled transition times (2.0 ns typ) min

DS91M040 General Description

The DS91M040 is a quad M-LVDS transceiver designed for driving / receiving clock or data signals to / from up to four multipoint networks. M-LVDS (Multipoint LVDS) is a new family of bus interface devices based on LVDS technology specifically designed for multipoint and multidrop cable and backplane.

DS91M040 Datasheet (419.99 KB)

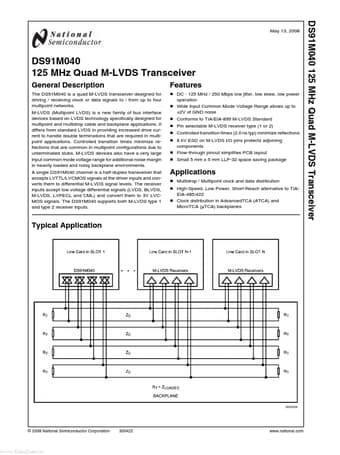

Preview of DS91M040 PDF

Datasheet Details

Part number:

DS91M040

Manufacturer:

National Semiconductor

File Size:

419.99 KB

Description:

125 mhz quad m-lvds transceiver.
