LF13333

Quad SPST JFET Analog Switches

National Semiconductor

LF13333 Features

* n Analog signals are not loaded n Constant “ON” resistance for signals up to ± 10V and 100 kHz n Pin compatible with CMOS switches with the advantage of blow out free handling n Small signal analog signals to 50 MHz n Break-before-make action: tOFF < tON n High open switch isolation at 1.0 MHz:

LF13333 General Description

These devices are a monolithic combination of bipolar and JFET technology producing the industry’s first one chip quad JFET switch. A unique circuit technique is employed to maintain a constant resistance over the analog voltage range of ± 10V. The input is designed to operate from minimum TTL level.

LF13333 Datasheet (416.30 KB)

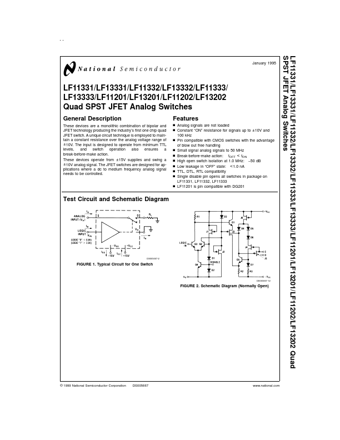

LF13333 Datasheet Preview — Preview of LF13333 PDF

Datasheet Details

Part number:

LF13333

Manufacturer:

National Semiconductor

File Size:

416.30 KB

Description:

Quad spst jfet analog switches.
LF11331/LF13331/LF11332/LF13332/LF11333/LF13333/LF11201/LF13201/LF11202/LF13202 Quad SPST JFET Analog Switches January 1995 LF11331/LF13331/LF11332/.
