LM1044 - Analog Video Switch

National Semiconductor

The LM1044 by National Semiconductor is a Analog Video Switch. Below is the official datasheet preview.

📥 Download Datasheet

LM1044 Analog Video Switch by National Semiconductor - Datasheet Preview — Official preview page of the **LM1044** Analog Video Switch datasheet (National Semiconductor).

Datasheet Details

Part number	LM1044
Manufacturer	National Semiconductor
File Size	193.88 KB
Description	Analog Video Switch
Datasheet	LM1044_NationalSemiconductor.pdf

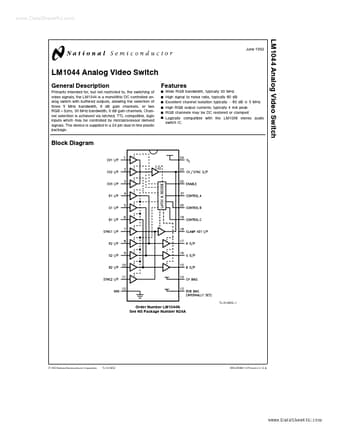

Additional preview pages of the LM1044 datasheet.

LM1044 Product details

Description

Primarily intended for but not restricted to the switching of video signals the LM1044 is a monolithic DC controlled analog switch with buffered outputs allowing the selection of three 5 MHz bandwidth 6 dB gain channels or two RGB a Sync 30 MHz bandwidth 0 dB gain channels Channel selection is achieved via latched TTL compatible logic inputs which may be controlled by microprocessor derived signals The device is supplied in a 24 pin dual in line plastic package

Features

Y Y Y Y Y Y Wide RGB bandwidth typically 30 MHz High signal to noise ratio typically 60 dB Excellent channel isolation typically b60 dB 5 MHz High RGB output currents typically 4 mA peak RGB channels may be DC restored or clamped Logically compatible with the LM1038 stereo audio switch IC Block Diagram TL H 9252.
1 Order Number LM1044N See NS Package Number N24A C1995 National Semiconductor Corporation TL H 9252 RRD-B30M115 Printed in U S A Absolute Maximum Ratings If Military A.
