LM185-12 - Micropower Voltage Reference Diode

National Semiconductor

Datasheet Details

Part number	LM185-12
Manufacturer	National Semiconductor ↗
File Size	464.71 KB
Description	Micropower Voltage Reference Diode
Datasheet	LM185-12_NationalSemiconductor.pdf

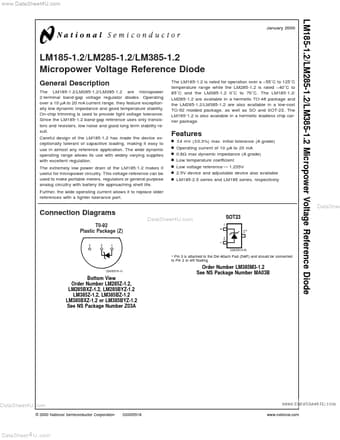

The LM185-1.2/LM285-1.2/LM385-1.2 are micropower 2-terminal band-gap voltage regulator diodes.

n n n n n n n ± 4 mV ( ± 0.3%) max. initial tolerance (A grade) Operating current of 10 µA to 20 mA 0.6Ω max dynamic impedance (A grade) Low temperature coefficient Low voltage reference.
1.235V 2.5V device and adjustable device also available LM185-2.5 series and LM185 series, respectively DataShee Connection Diagrams DataSheet4U. com T0-92 Plastic Package (Z) SOT23 DS005518-33.
Pin 3 is attached to the Die Attach Pad (DAP) and should be connected to Pin 2 or left floating.
