LM185-2.5QML - Micropower Voltage Reference Diode

Datasheet Summary

Description

The LM185-2.5 are micropower 2-terminal band-gap voltage regulator diodes.

Operating over a 20 μA to 20 mA current range, they feature exceptionally low dynamic impedance and good temperature stability.

On-chip trimming is used to provide tight voltage tolerance.

Features

  • 1.
  • 2 Operating Current of 20 μA to 20 mA.
  • 0.6Ω Dynamic Impedance (A grade).
  • Low Temperature Coefficient.
  • Low Voltage Reference.
  • 2.5V.

📥 Download Datasheet

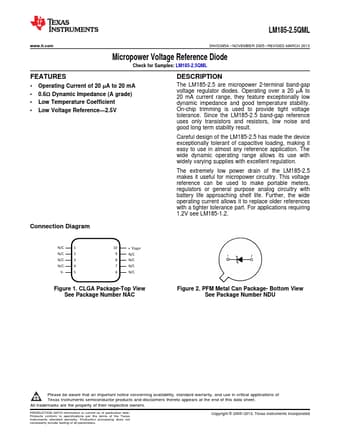

Datasheet preview – LM185-2.5QML
